Aircraft for sale

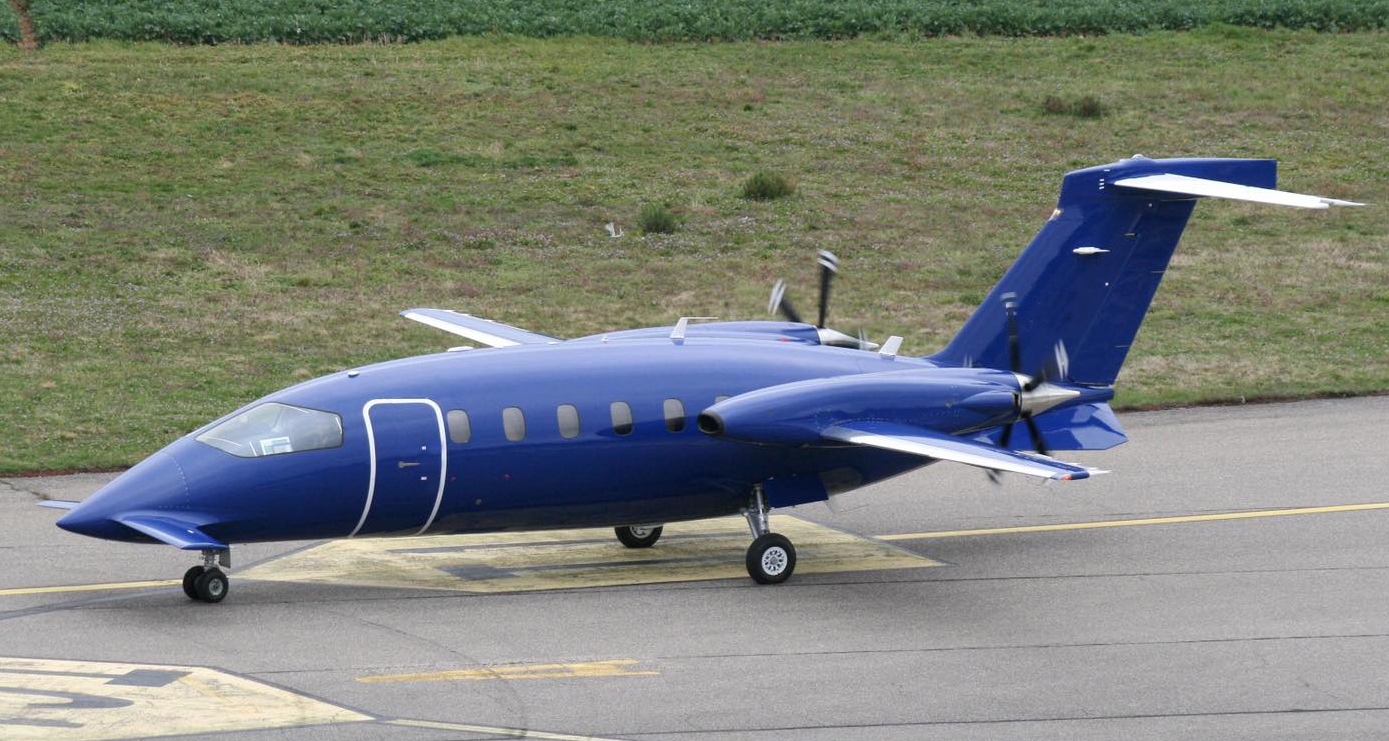

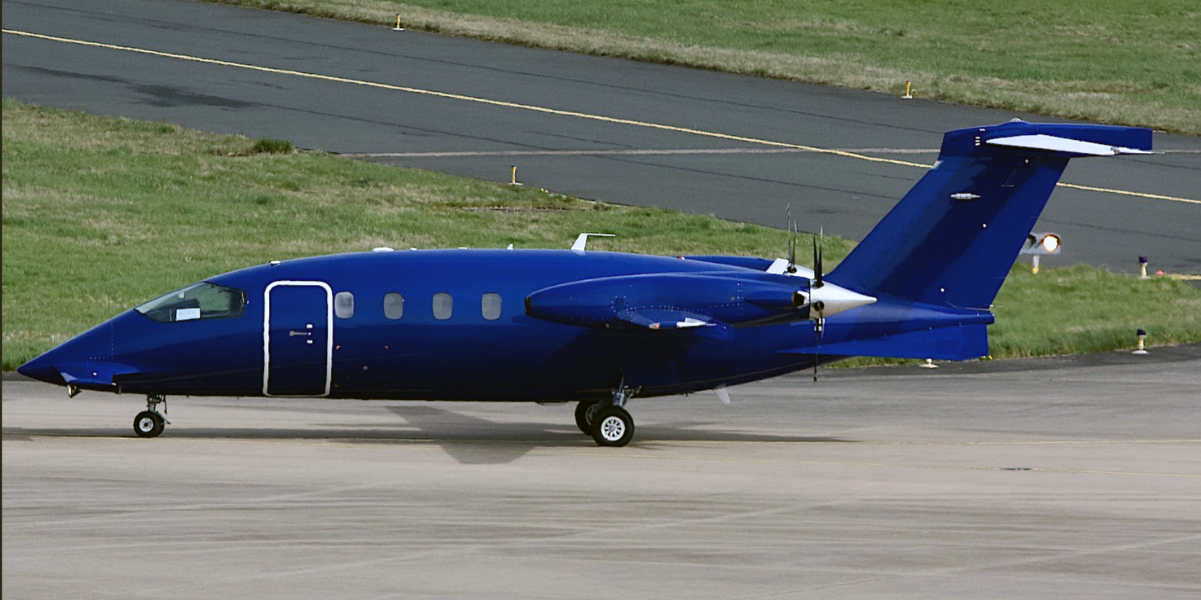

2007 Piaggio Avanti II - ENLARGED DOOR


- 3,970 FH

- Enlarged Cabin Door

- 370 FH since D-Check, Engines, Props, Main Landing Gear Overhauls,

- New Paint in 2023

- Pratt & Whitney PT6A-66B Engines

- Collins Pro Line 21 Avionics Suite

- ADS-B Out

- CVR

- Polished Wing Leading Edges

- RVSM, Mach 0.7, Category II Landings and Steep Approach

- JAR OPS1

- Air AMbulance Kit (1 or 2 Stretchers) Available on Request


- 3,970 FH

- 370 FH since D-Check, Engines, Props, Main Landing Gear Overhauls,

- Pratt & Whitney PT6A-66B Engines

- Collins Pro Line 21 Avionics Suite

- ADS-B Out

- CVR

- Polished Wing Leading Edges

- RVSM, Mach 0.7, Category II Landings and Steep Approach

- JAR OPS1

- Air AMbulance Kit (1 or 2 Stretchers) Available on Request

2 x Pratt & Whitney PT6A-66B Engines

  • 3,970 / 3,970  FH since new
  • 370 / 370 FH since Overhaul
  • Overhauls performed by PWC

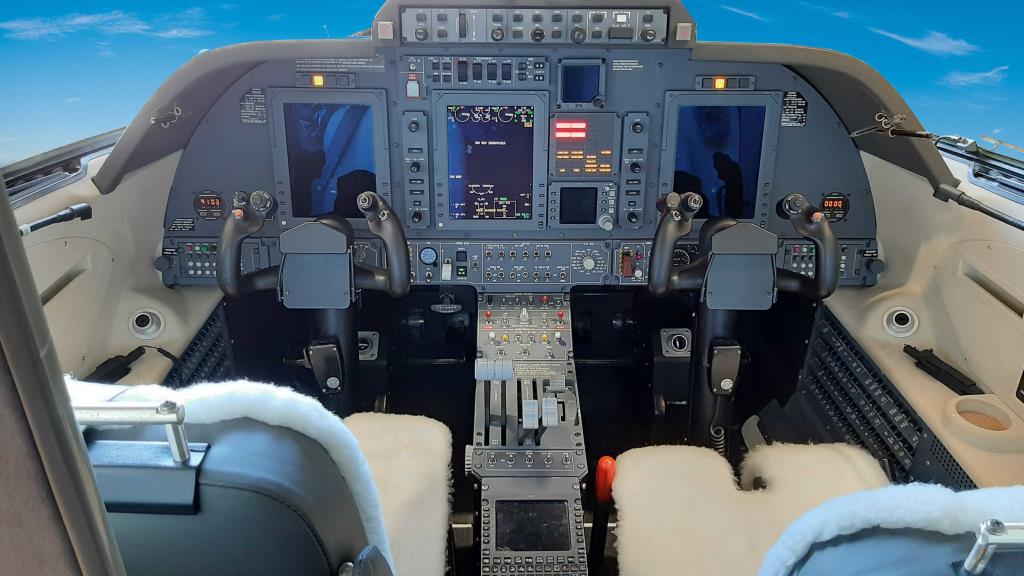

Rockwell-Collins ProLine 21 Avionic Package

  • Radio Management System – Collins RTU-4200, CDU-3000
  • Dual VHF COM - Collins VHF-4000 Transceiver - 8.33 kHz spacing
  • VHF NAV 1 + ADF - Collins NAV-4000 VOR/ILS/MKR/ADF Receiver
  • VHF NAV 2 - Collins NAV-4500 VOR/ILS/MKR Receiver
  • Single DME - Collins DME-4000 (3 channel)
  • Dual Mode S Flight ID Diversity Transponder - Collins TDR-94D
  • Radio Altimeter - Collins ALT-4000 (Operation to 2500 ft)
  • Turbulence Detection Color Weather Radar - Collins RTA-852 - 12" Antenna
  • TCAS I – L-3 Communications SkyWatch HP - SKY899
  • TAWS Class B with Worldwide Database – L-3 Landmark TAWS 8000
  • Dual Audio Panel - Baker B1045, Dual Cockpit Speaker
  • Dual hand-held Microphone, Dual Boom/Microphone/Headset
  • EFIS with EIS – Three Collins displays AFD-3010, two DCP-3030, CCP-3000
  • Flight Guidance System - Collins Dual FGC-3003 (A/P,YD, dual Flight Director included), three SVO-3000 Servos, single FGP-3000 Flight Guidance Panel
  • Single FMS - Collins FMC-3000 (NAV to NAV and VNAV), CDU-3000
  • DBU-4100
  • GPS Sensor Unit - Collins GPS-4000A
  • Dual ADS - Collins ADC-3000
  • Dual AHRS - Collins AHC-3000 and FDU-3000
  • Maintenance Diagnostic System - Collins MDC-3110
  • Four Data Concentrator Unit - Collins DCU-3001
  • Stand-by Cluster Instrument – L-3 Communications GH-3100
  • Emergency Locator Transmitter – TECHTEST TYPE 501 P/N 503-1
  • Dual Clock (Flight Hour Meter included)
  • Dual Master Annunciator
  • Dual Turn&Slip Indicator (shown on the displays)
  • Reversionary/Miscellaneous Panel
  • Cockpit Voice Recorder - CVR L3 Comm FA2100.
  • Underwater Locator Beacon CVR ULB DK120.
  • RVSM & ADS-B Out Compliant

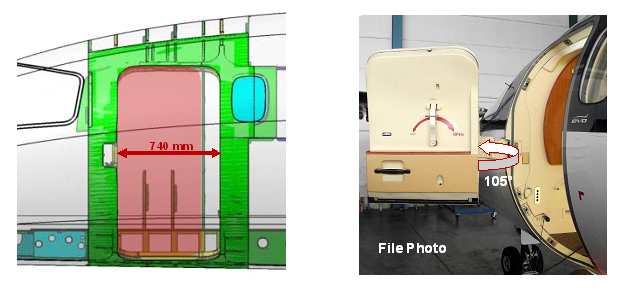

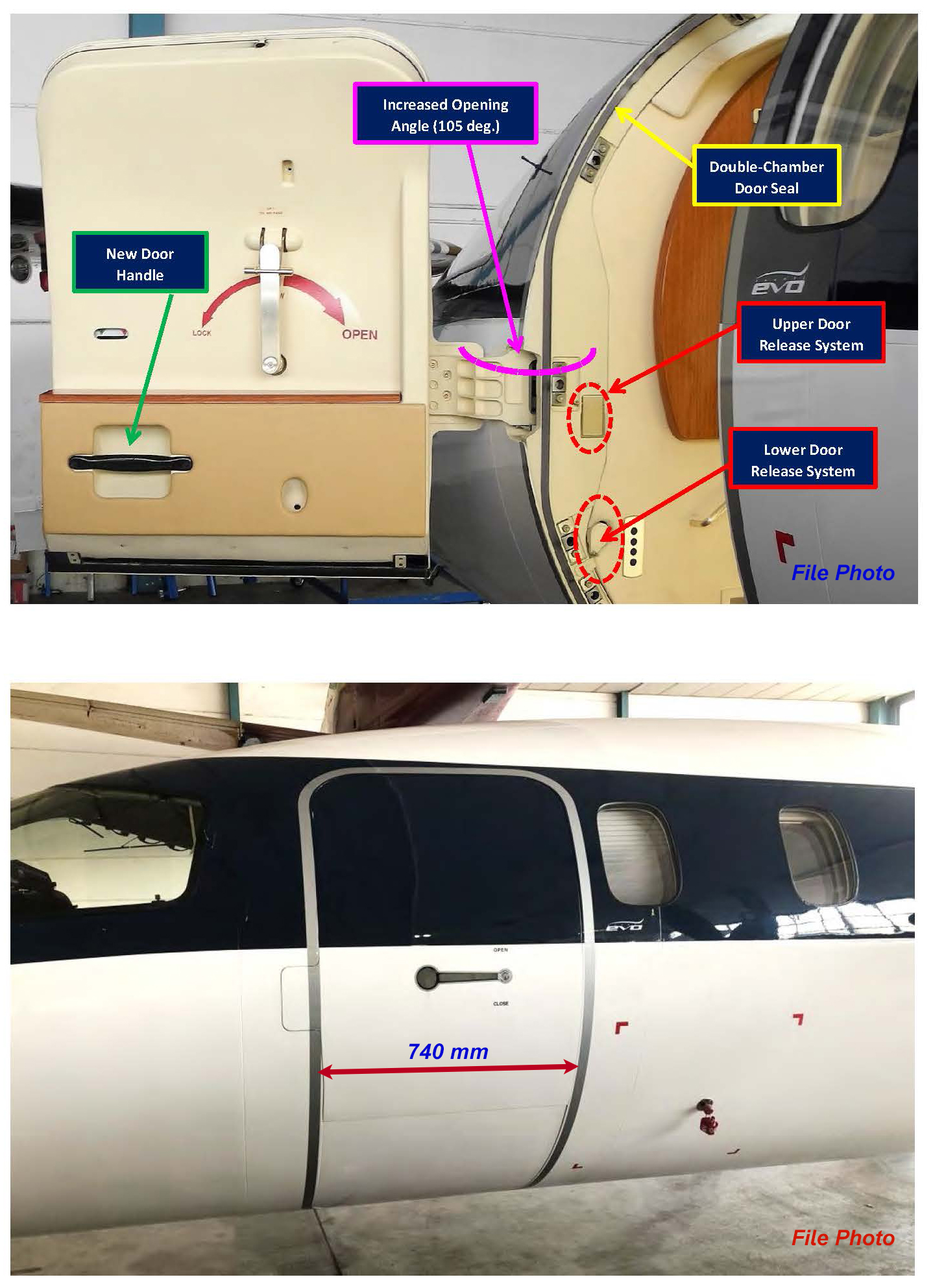

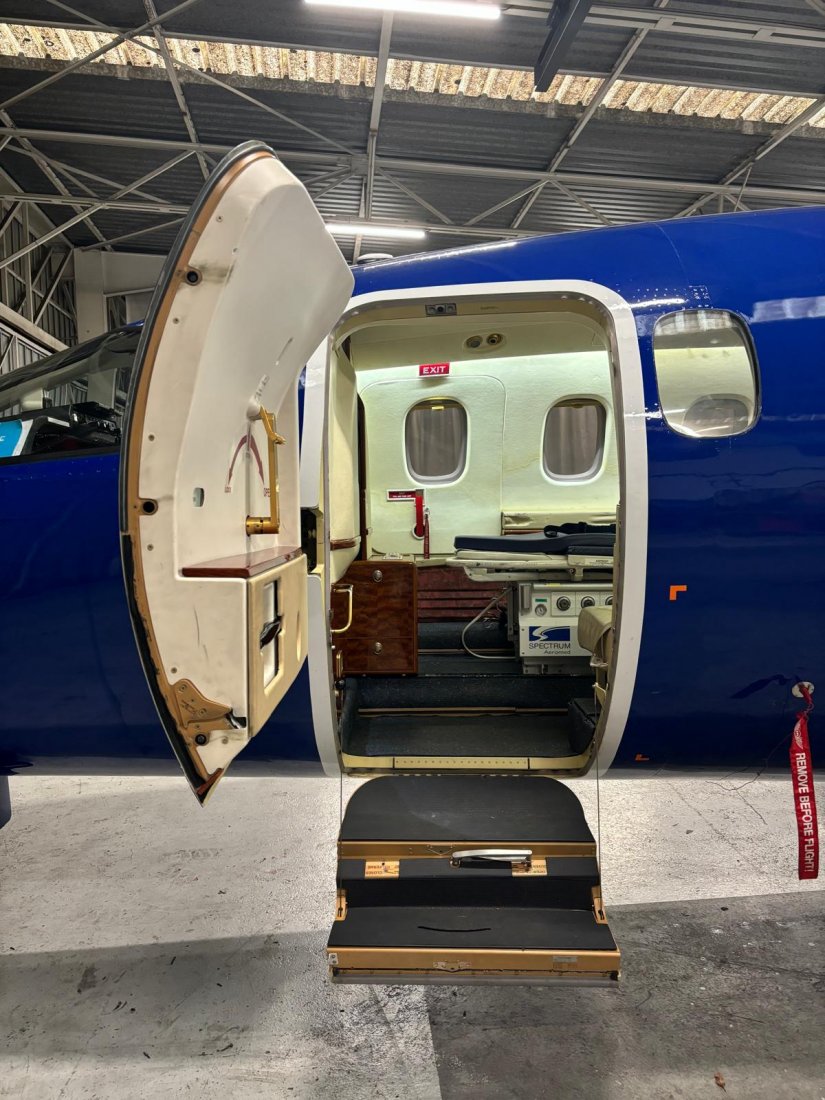

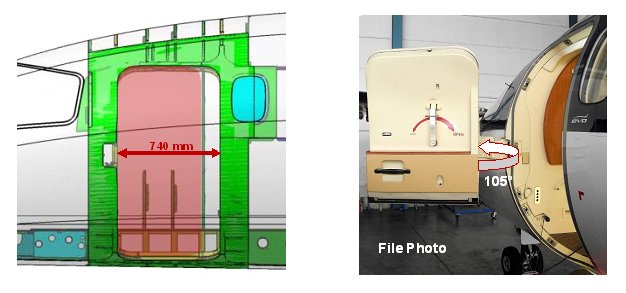

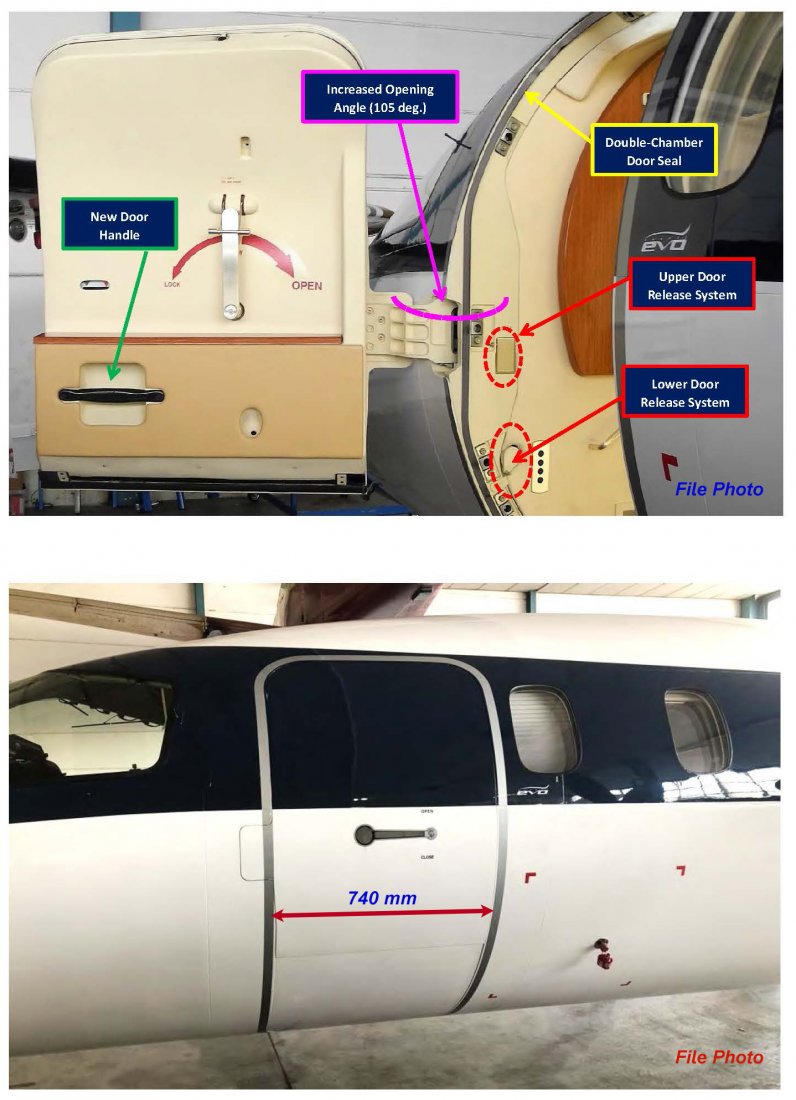

  • Large Cabin Door Modification (by Piaggio)

    Door width :              740 mm (+ 130 mm)
    Hinge angle :            105° (+ 7°)
  • Satellite Phone Air Cell ST3100 with dual handset
  • Engine Fire Extinguisher
  • Cockpit Voice Recorder
  • Polished Wing Leading Edges
  • Air Ambulance Provisions
  • Max Take Off Weight Increase (12,100 lbs)

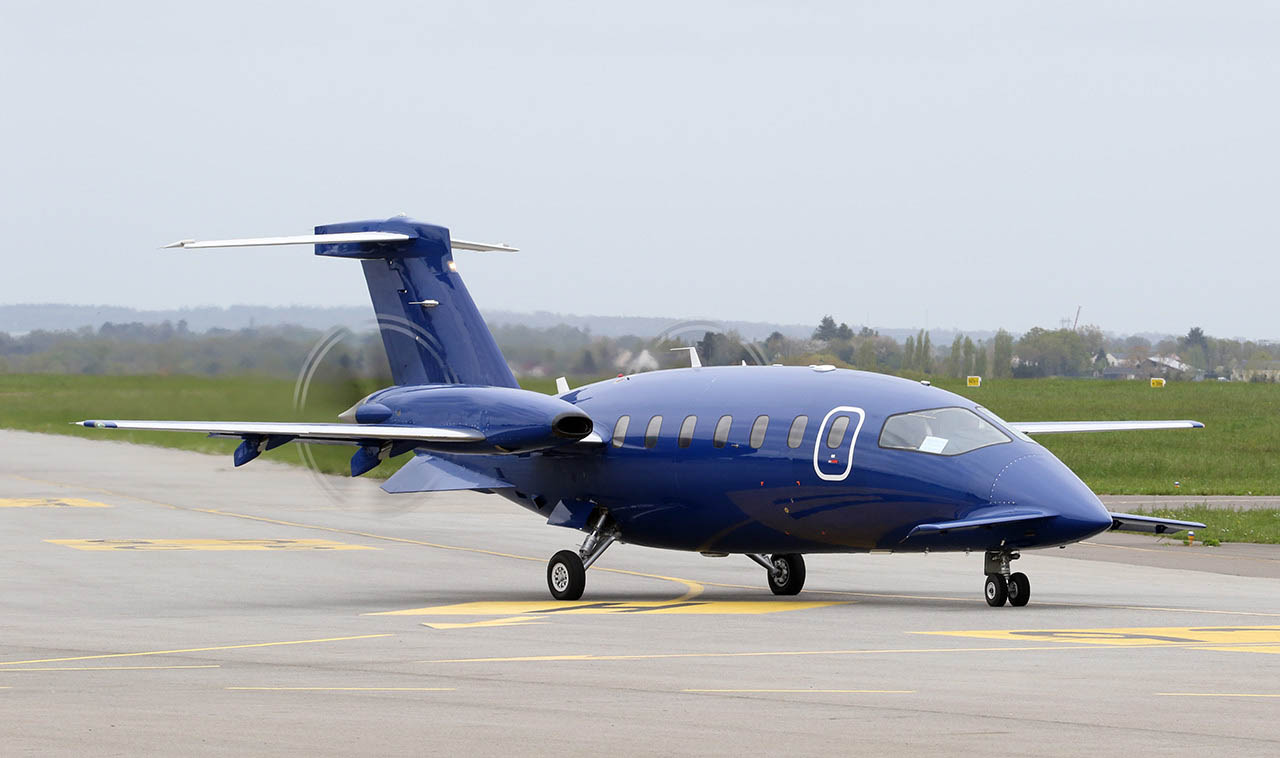

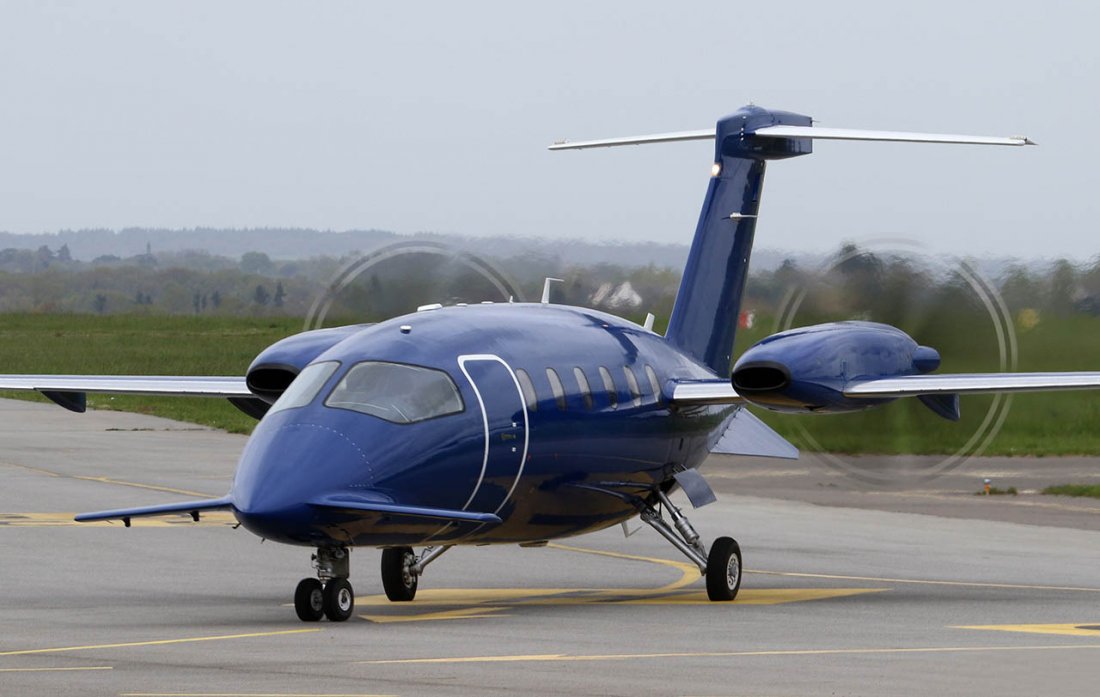

- New paint in 2023

- Overall Dark Blue

- Polished Wing Leading Edges

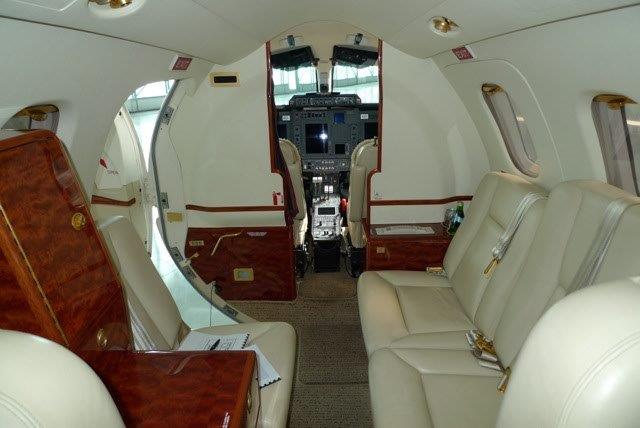

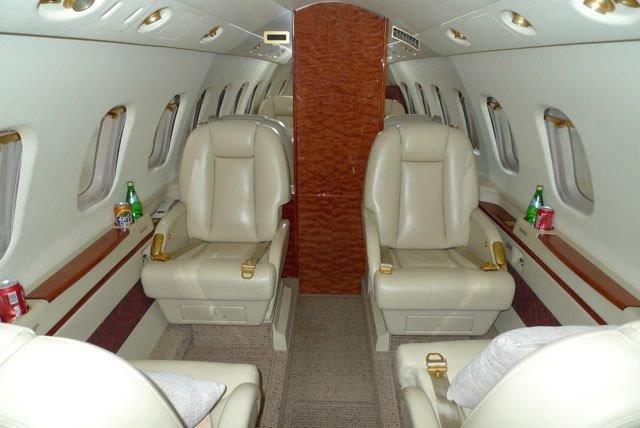

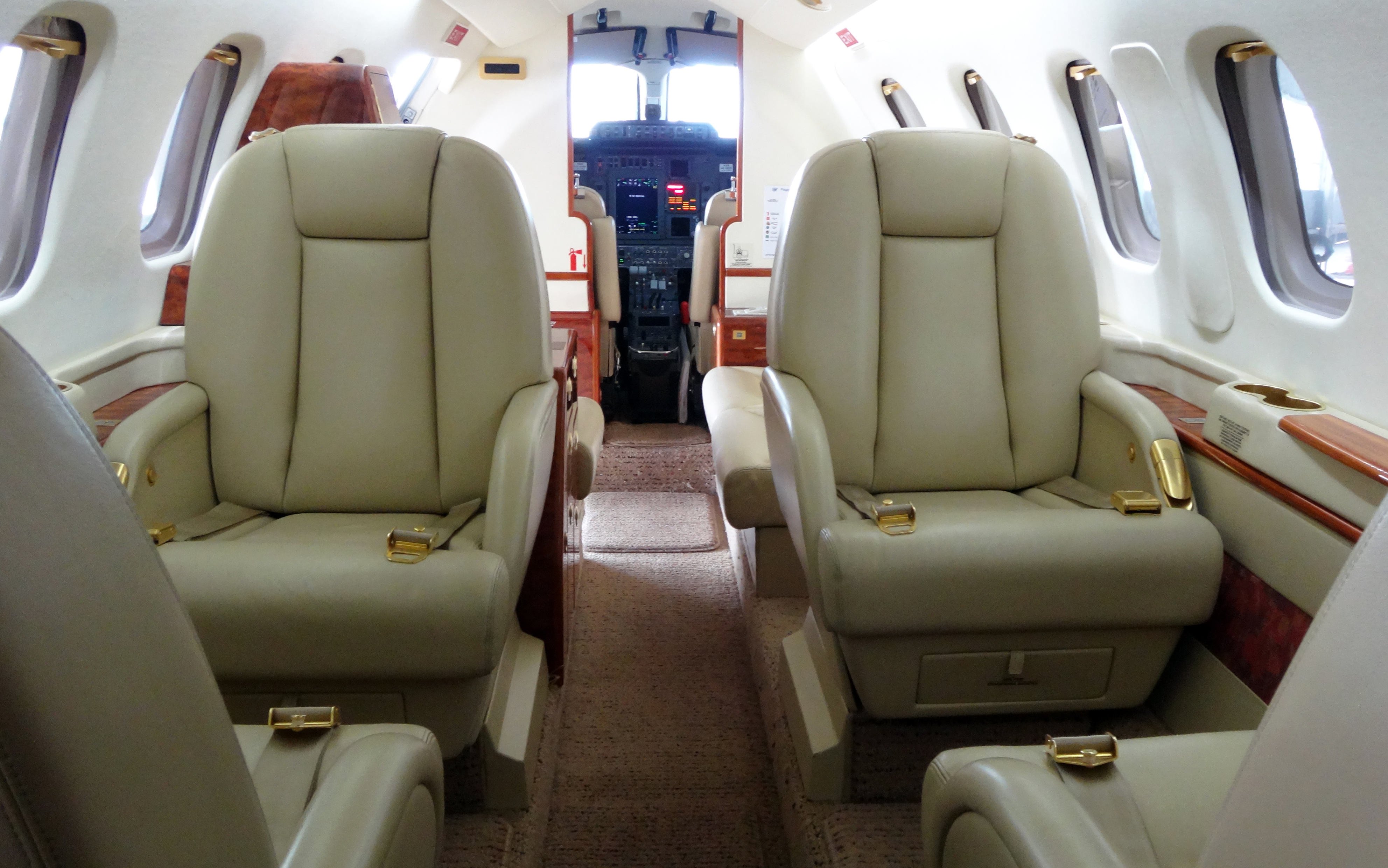

VIP Corporate Interiors - "Option 1" floorplan (7-Place + 1)


. Four single passenger seats in club arrangement
. One single passenger side-facing seats.
. Two-seat divan
. Aft fully enclosed lavatory with flushing potty and belted aft auxiliary passenger seat,

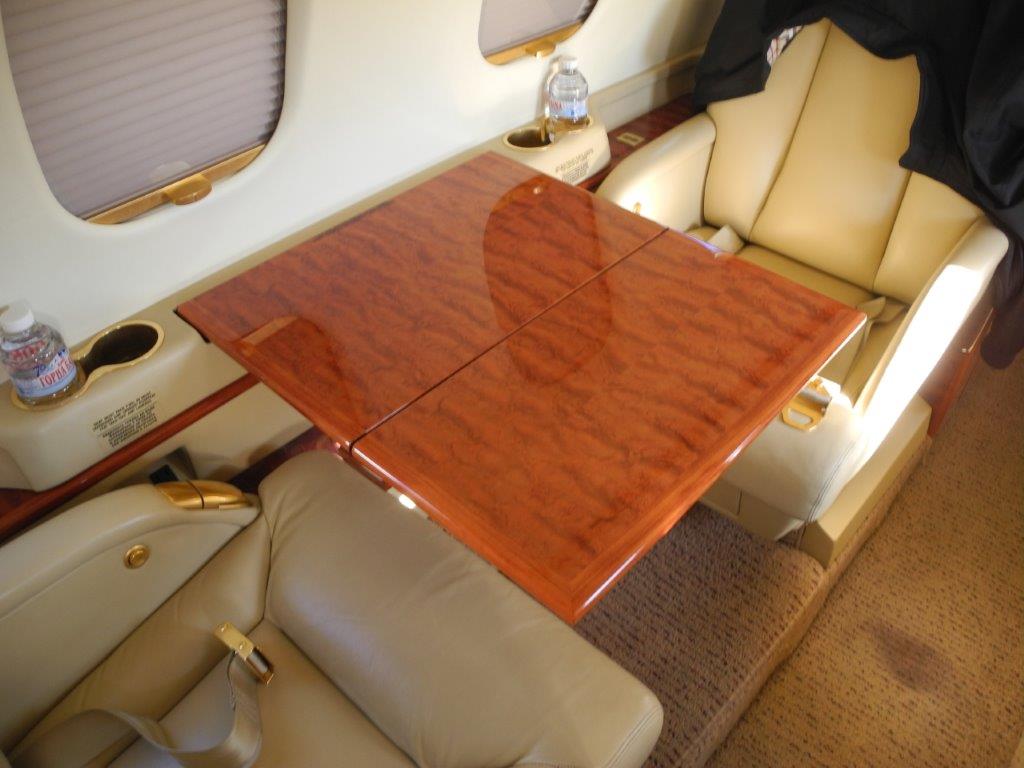

. Dual executive tables

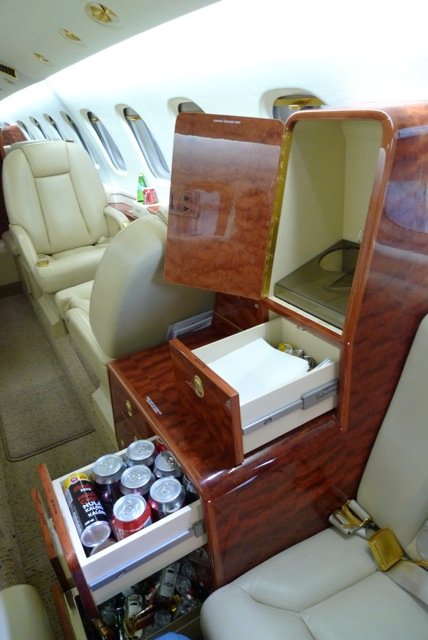

. Refreshment center with ice chest and miscellaneous storage

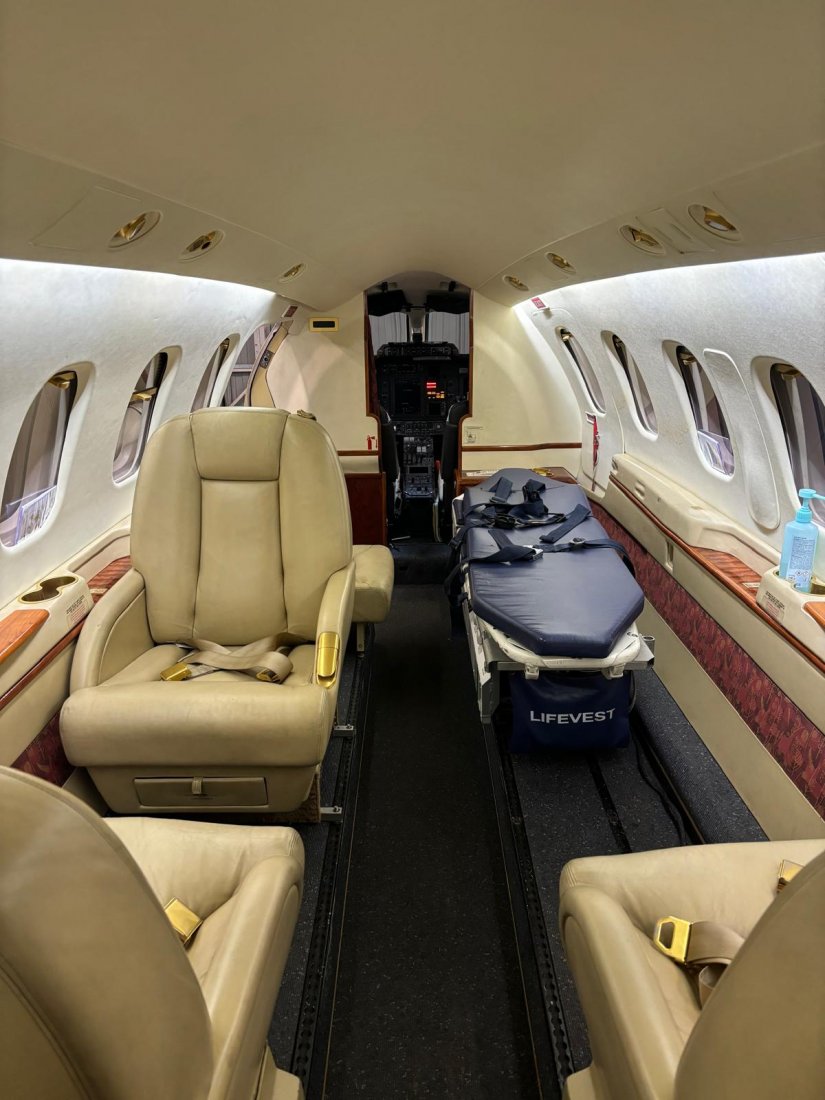

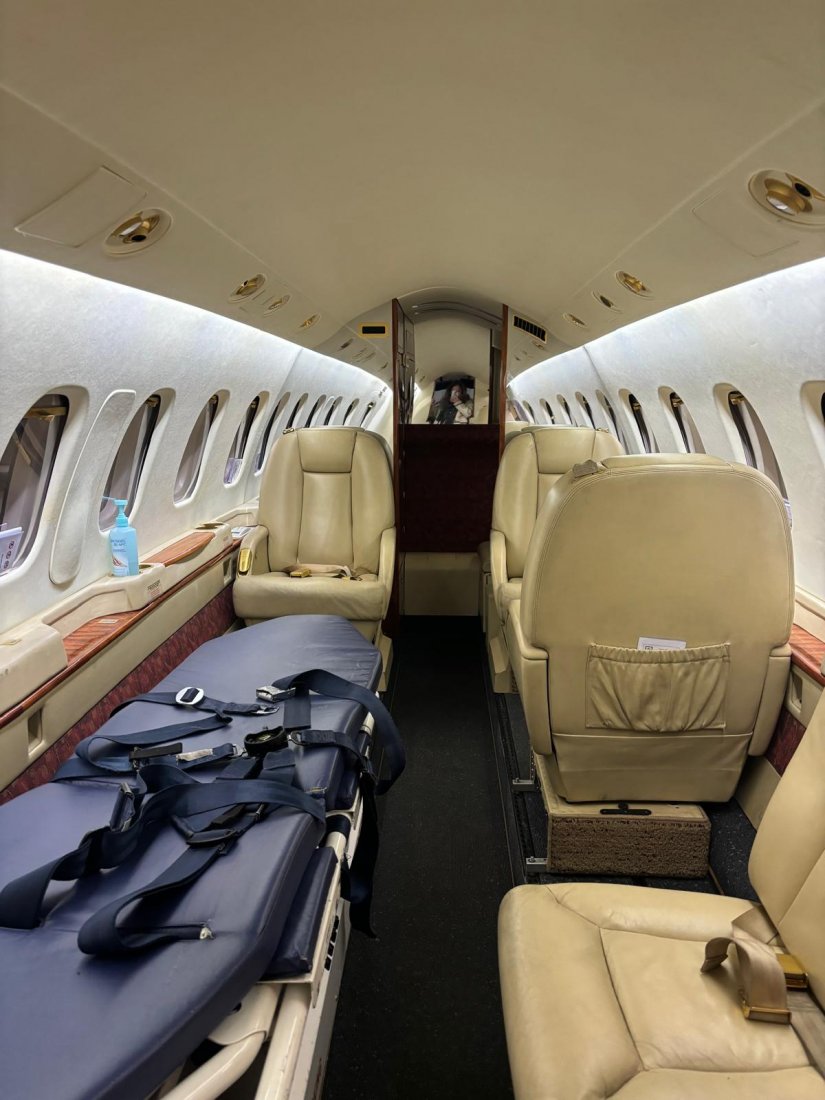

Air-Ambulance Kit (1 or 2 Stretchers) available on request

CALL !





SPECIFICATIONS AND/OR DESCRIPTIONS ARE PROVIDED AS INTRODUCTORY INFORMATION ONLY AND DO NOT CONSTITUTE REPRESENTATIONS OR WARRANTIES OF ORIONFLY. VERIFICATION OF SPECIFICATIONS REMAINS SOLE RESPONSIBILITY OF PURCHASER. AIRCRAFT SUBJECT TO PRIOR SALE AND REMOVAL FROM THE MARKET.
