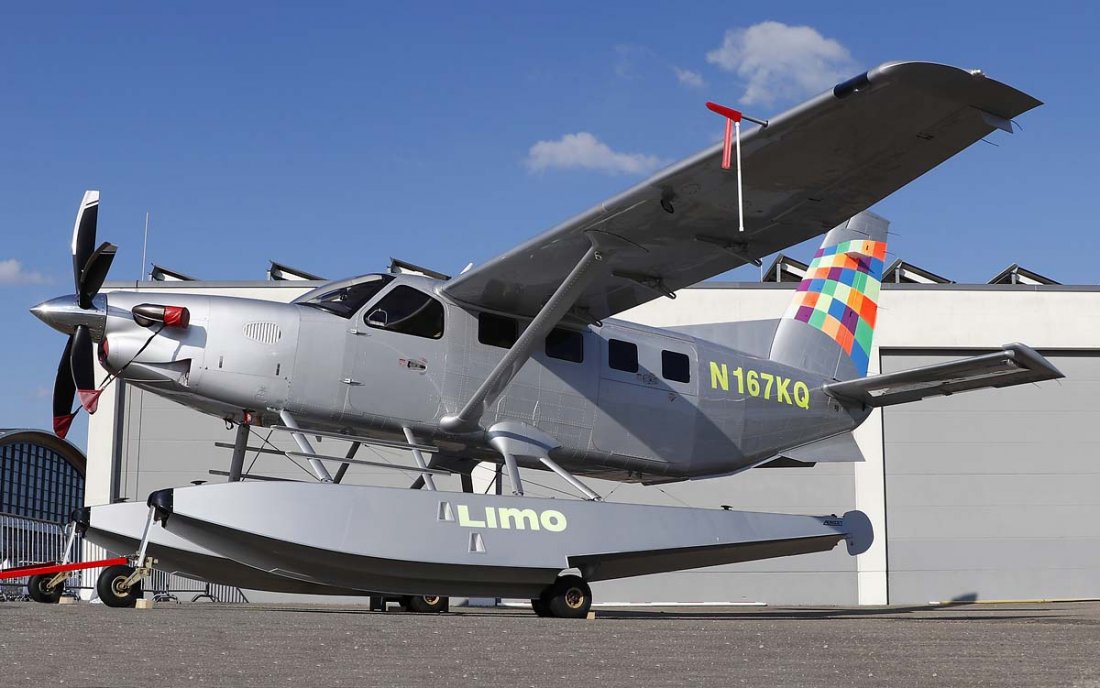

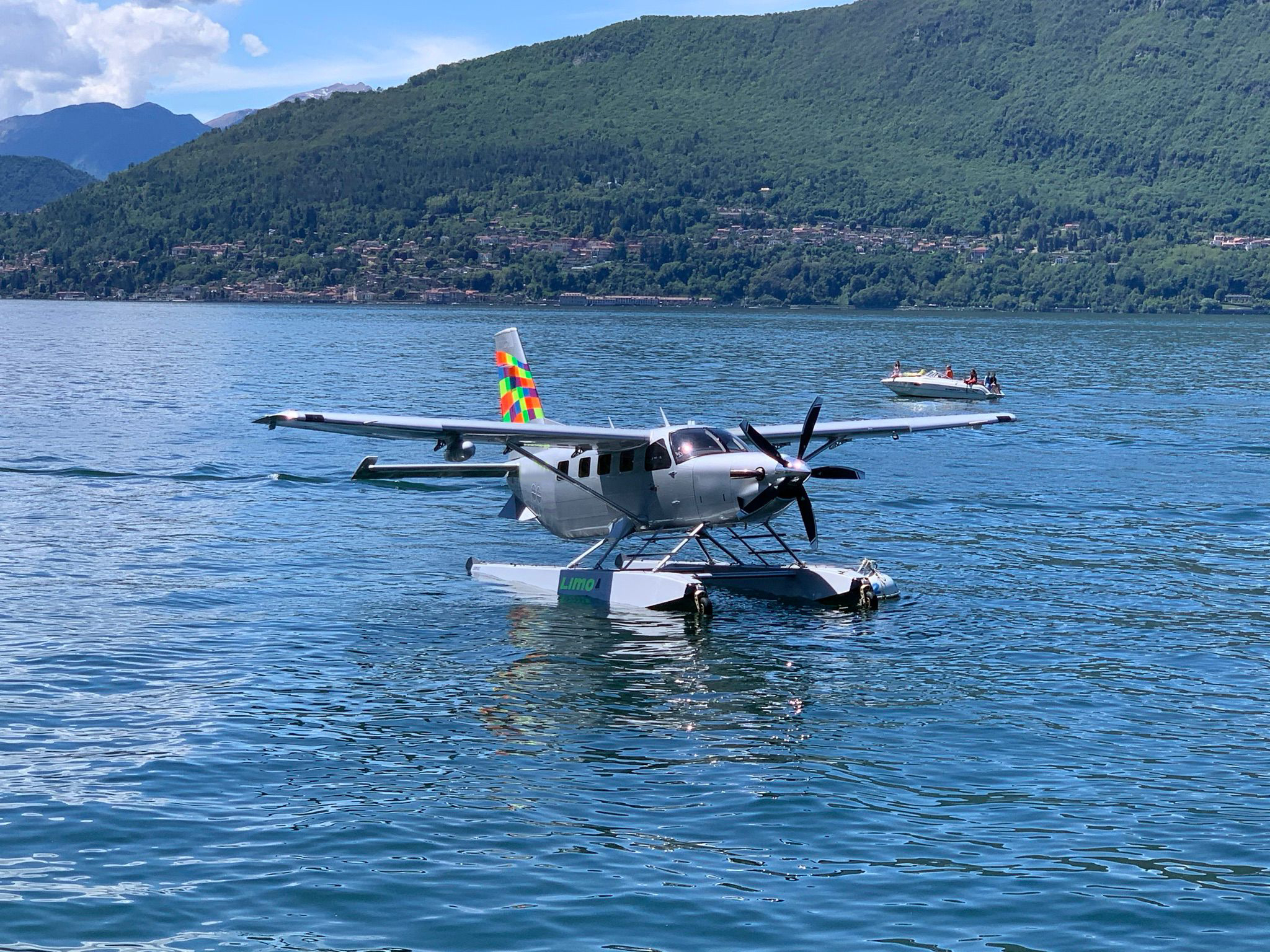

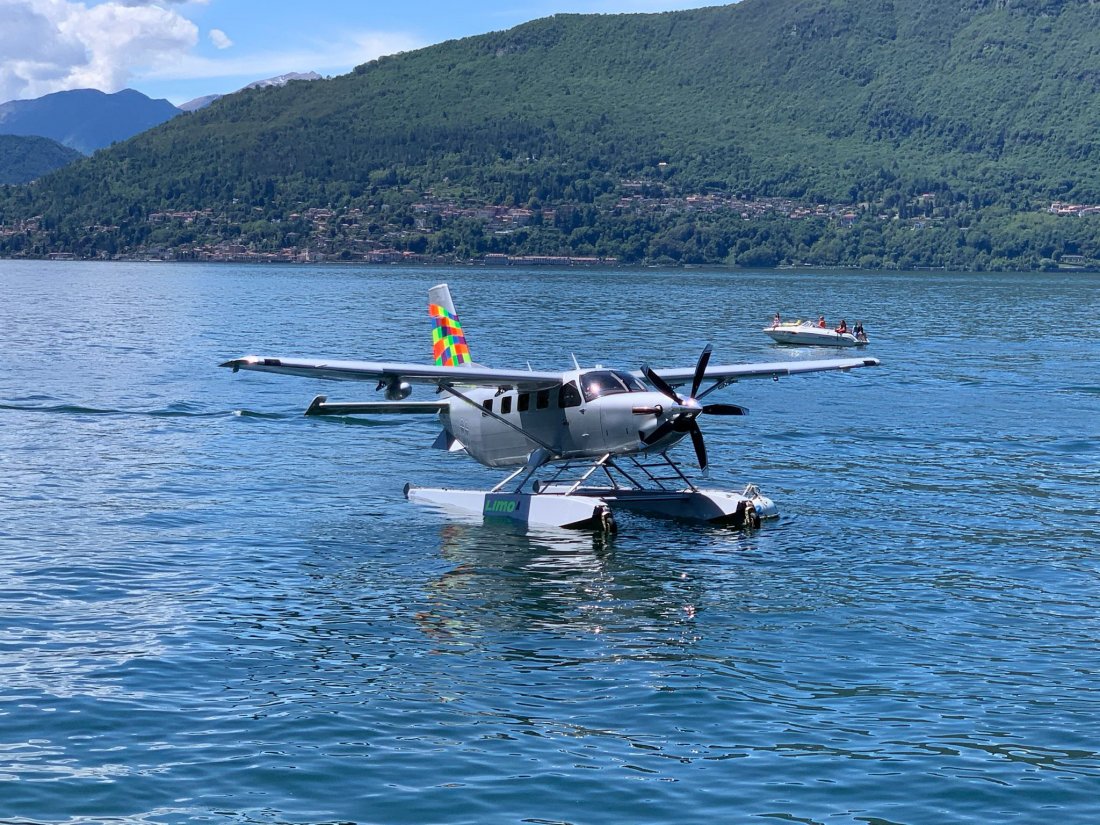

2016 - QUEST KODIAK 100 SEA - MAKE OFFER !


2016 YOM -

190  FH  Total Time Since New -

Aerocet 6650 Amphibious Floats -

GFC 700 Autopilot -

Air Conditioning -

8 + 2 Seats Cabin Arrangement -

New Paint in 2020 -

No Damage History -


2016 YOM

190  FH  Total Time Since New

Aerocet 6650 Amphibious Floats

GFC 700 Autopilot

Air Conditioning

8 + 2 Seats Cabin Arrangement

New Paint in 2020

No Damage History

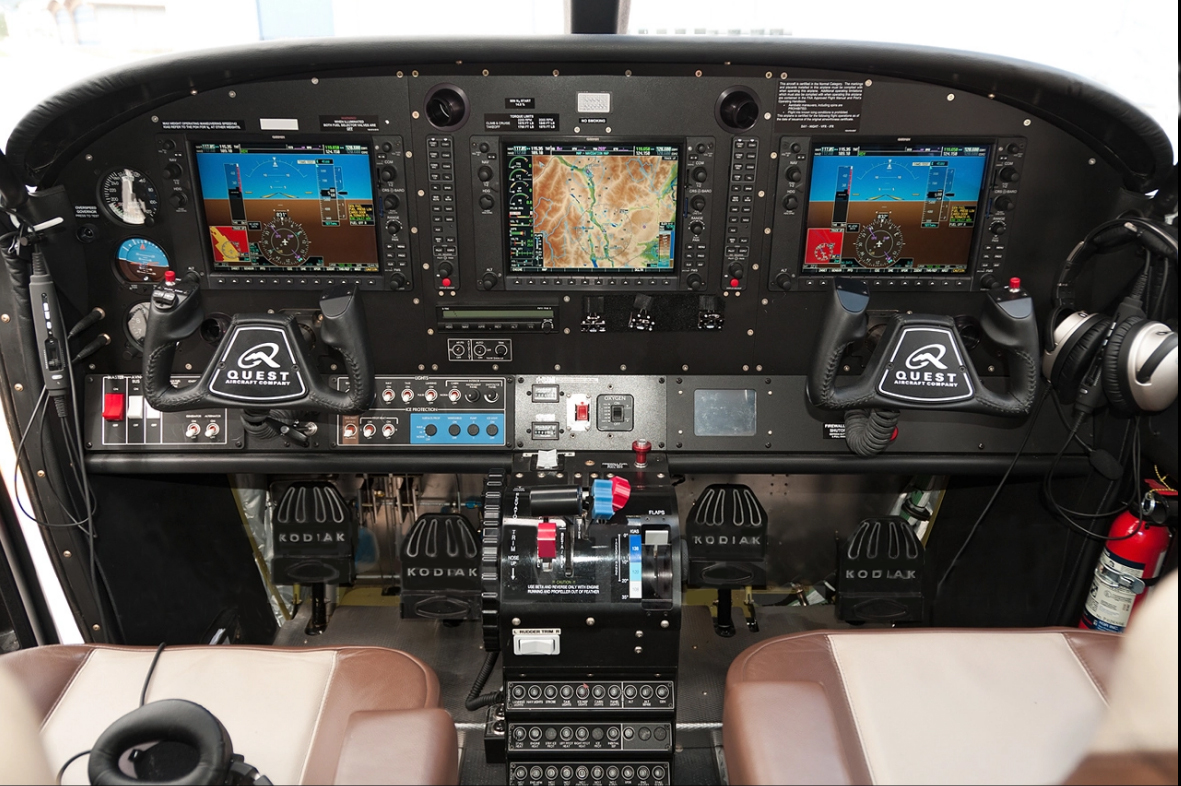

– Garmin G1000® Integrated Flight Deck

– 2 x 10.4” PFDs, 1x 10.4” MFD

– Dual GIA 63 GPS/NAV/COM

– Dual GMA 1347 Audio Panel

– GTX 33 Mode S Transponder

– GFC 700 Autopilot

– Garmin Synthetic Vision

– Garmin TAWS-B

– Standby Instruments

Artificial Horizon, Airspeed, Altimeter

– Garmin GWX 68 WX Radar

– Garmin GTS 800 Traffic Advisory System

ENGINE :     Pratt & Whitney  PT6A-34



Take-Off Power :  750 SHP

TBO:  4000 FH



PROPELLER :   MTV-27 Propeller

96”, 5-Blade Pitch Latch Propeller, constant speed, feathering, reversible





  • 8 + 2 Seats Cabin Arrangement
  • Air Conditioning System



SPECIFICATIONS

QUEST KODIAK 100 - SEA



Engine

750 shp

760 PS

Engine TBO Hours

4000

4000

Wingspan

45 ft

13,7 m

Overall Length

34 ft

10,4 m

Cabin Length

190”

4,82 m

Cabin Height

57”

1,45 m

Cabin Width

54”

1,37 m

Propeller Blade Diameter

5 Blade / 96”

2,4 m

Max Ramp Weight

7305 lbs

3313,5 kg

Power Loading

9.67 lb/shp

4,4 kg/PS

Float Make / Model

Aerocet 6650

PERFORMANCE



Max Cruise at 10,000 ft

162 kts

300 km/h

Take-off Distance (Land)

975 ft

297 m

Take-off Run Land (50ft Obstacle)

1,507 ft

459 m

Landing Distance (Land)

1,291 ft

393 m

Take-off Distance (Water)

1,735 ft

529 m

Take-off Run Water (50ft Obstacle)

2,332 ft

711 m

Landing Distance (Water)

1,314 ft

400 m

Rate of Climb

1,060 ft/min

5,38 m/s

Service Ceiling

20,000 ft

6096 m

Gross Weight

7,255 lbs

3290 kg

Landing Weight

7,200 lbs

3266 kg

Useful Load

2,755 lbs

1250 kg

Range

1000 nm

1852 km

MAKE OFFER !













SPECIFICATIONS AND/OR DESCRIPTIONS ARE PROVIDED AS INTRODUCTORY INFORMATION ONLY AND DO NOT CONSTITUTE REPRESENTATIONS OR WARRANTIES OF ORIONFLY. VERIFICATION OF SPECIFICATIONS REMAINS SOLE RESPONSIBILITY OF PURCHASER. AIRCRAFT SUBJECT TO PRIOR SALE AND REMOVAL FROM THE MARKET.
