2014 YOM -
750 FH Total Time Since New -

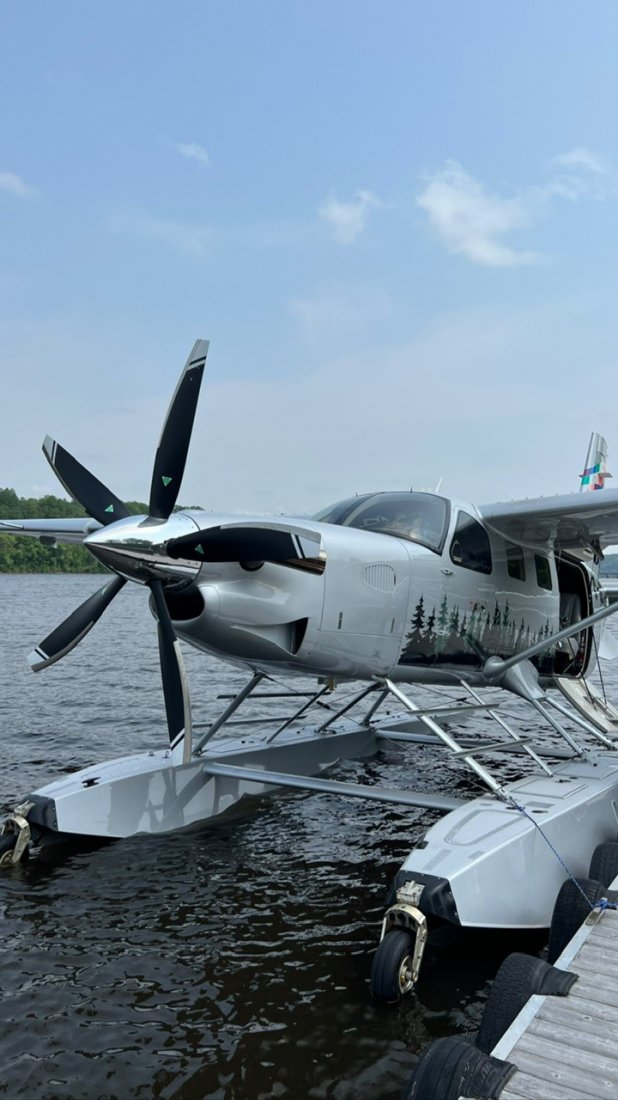

Aerocet 6650 Amphibious Floats -
Air Conditioning -
S-TEC 55X Autopilot -
Garmin Synthetic Vision
8 + 2 Seats Cabin Arrangement -
New Paint in 2020 -
No Damage History -
2014 YOM -
750 FH Total Time Since New -
Aerocet 6650 Amphibious Floats -
Air Conditioning -
S-TEC 55X Autopilot -
Garmin Synthetic Vision
8 + 2 Seats Cabin Arrangement -
New Paint in 2020 -
No Damage History -

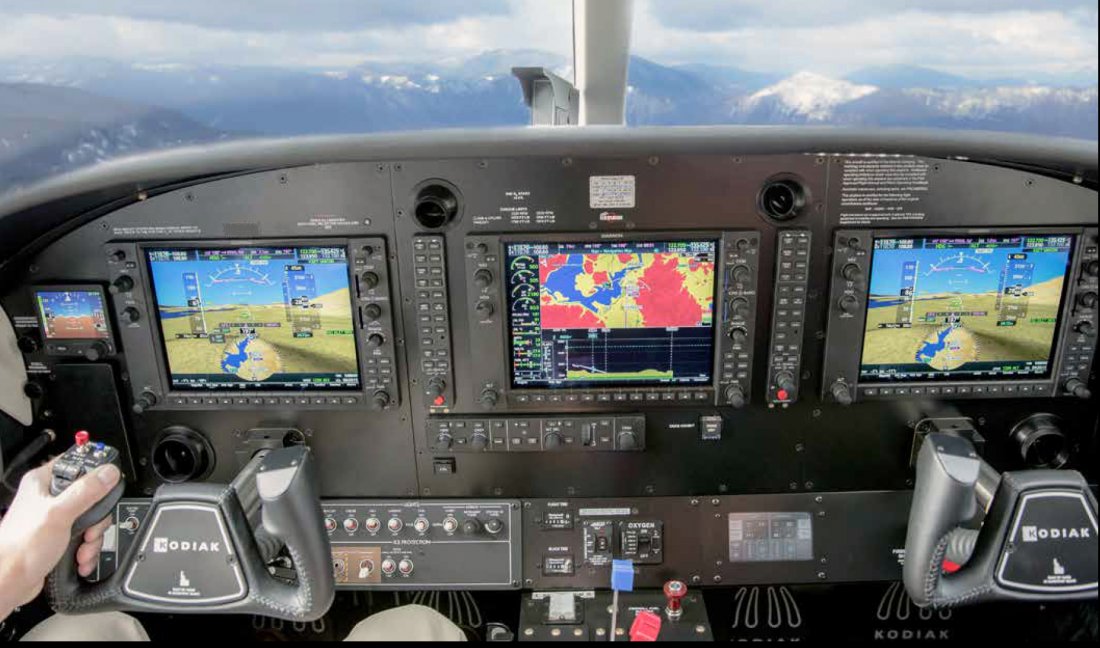

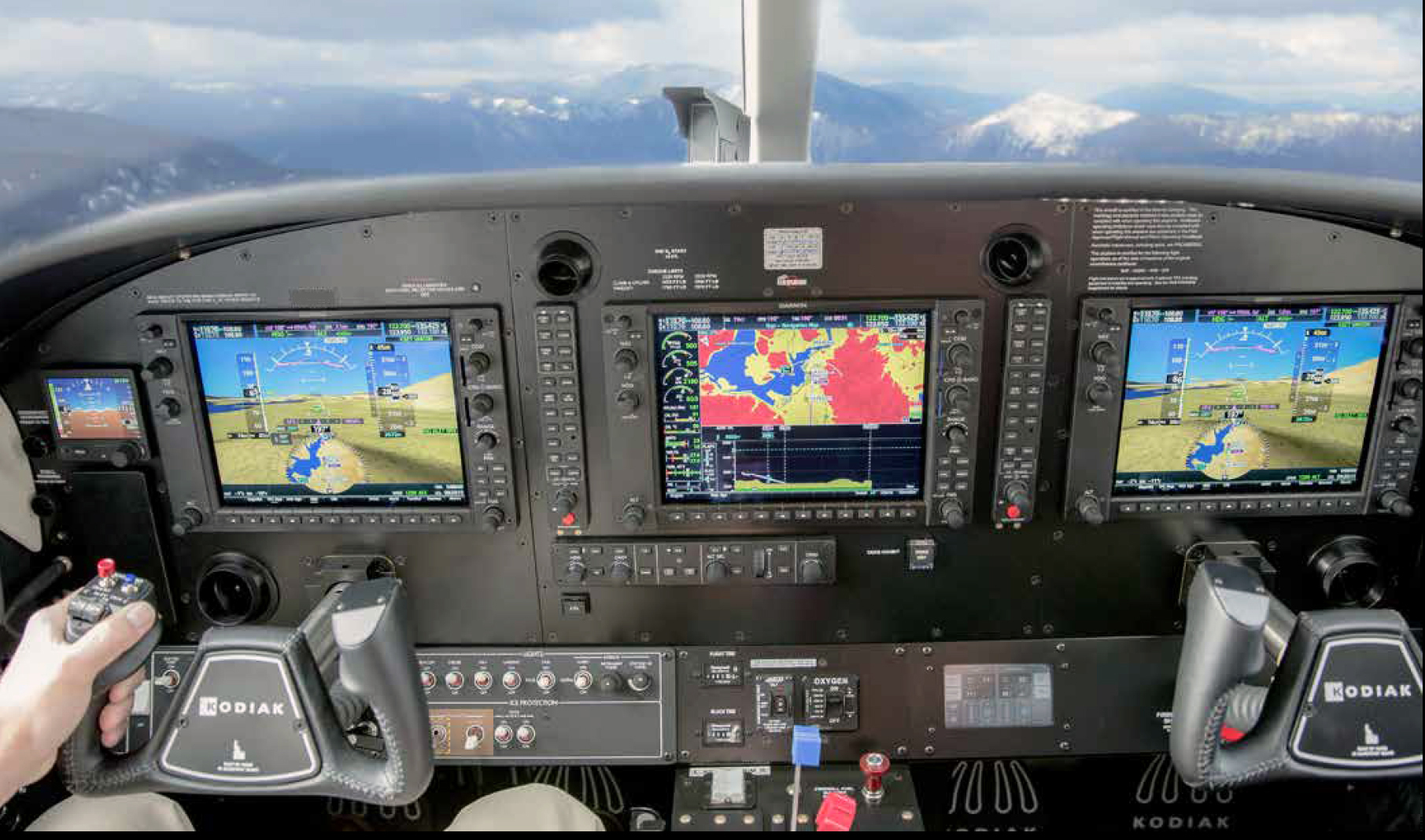

– Garmin G1000® Integrated Flight Deck
– 2 x 10.4” PFDs, 1x 10.4” MFD
– Dual GIA 63 GPS/NAV/COM
– Dual GMA 1347 Audio Panel
– GTX 33 Mode S Transponder
– S-TEC 55X Autopilot
– Garmin Synthetic Vision
– Garmin TAWS-B
– Standby Instruments
– Artificial Horizon, Airspeed, Altimeter
– Garmin GWX 68 WX Radar
– Garmin GTS 800 Traffic Advisory System
ENGINE : Pratt & Whitney PT6A-34
Take-Off Power : 750 SHP
TBO: 4000 FH
PROPELLER : MTV-27 Propeller
96”, 5-Blade Pitch Latch Propeller, constant speed, feathering, reversible

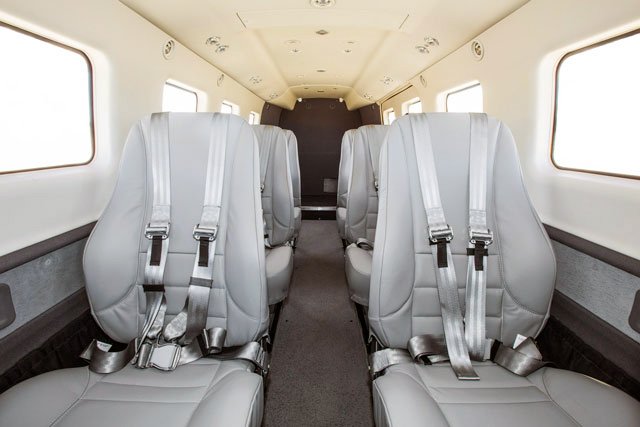

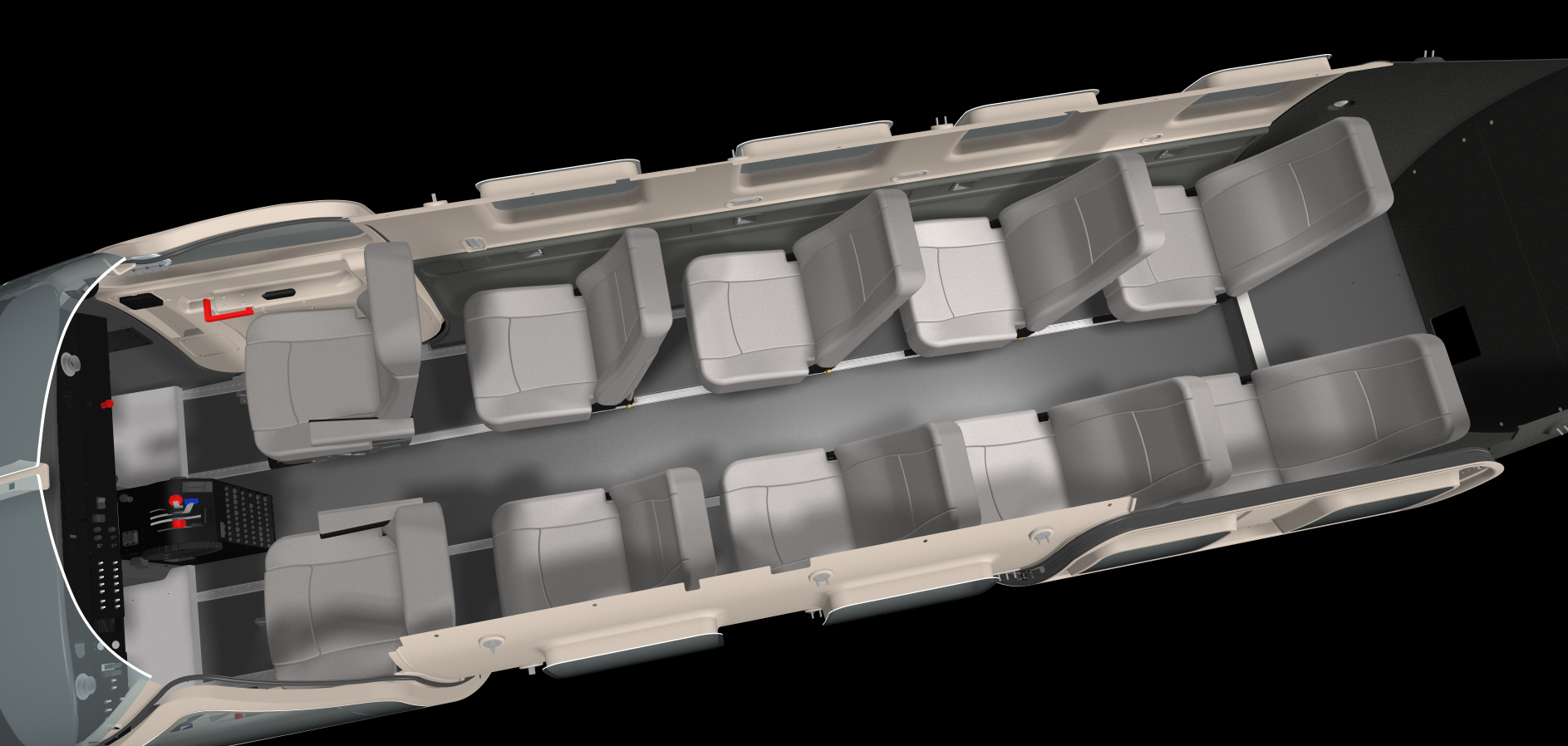

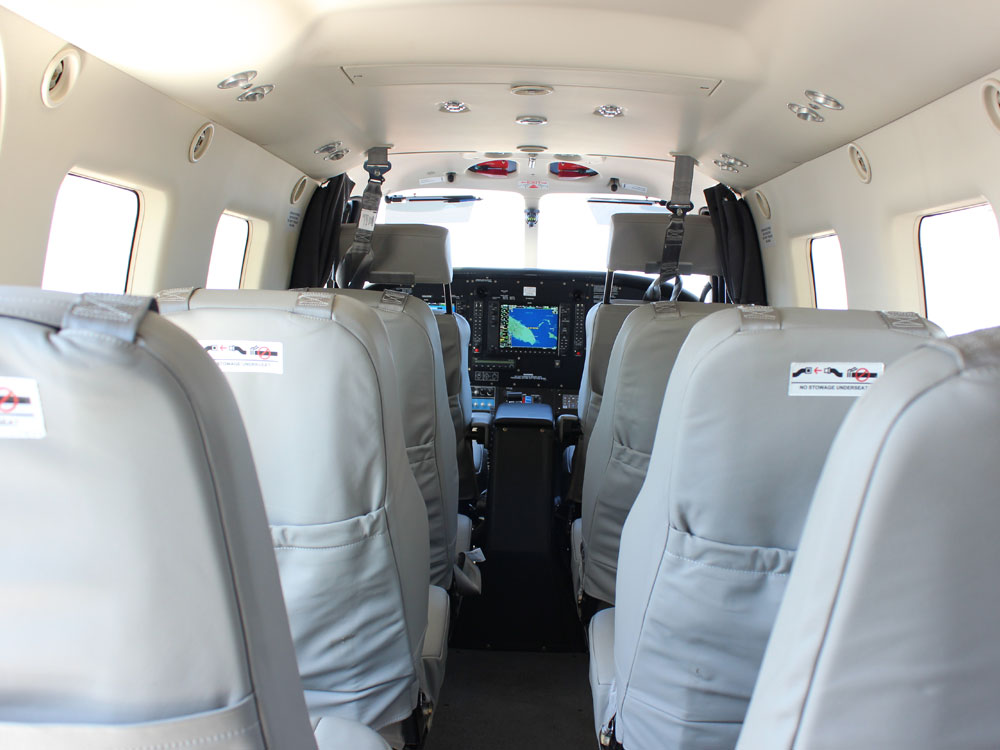

- 8 + 2 Seats Cabin Arrangement
- Air Conditioning System
|

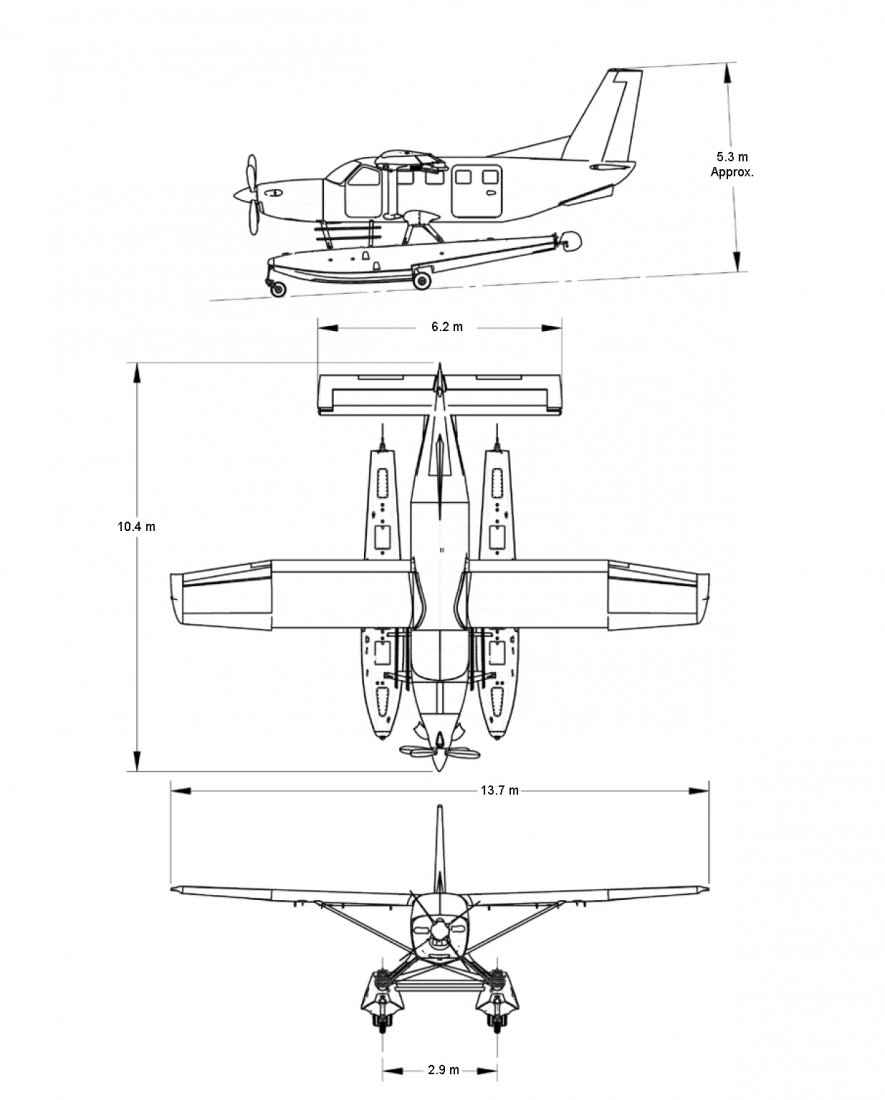

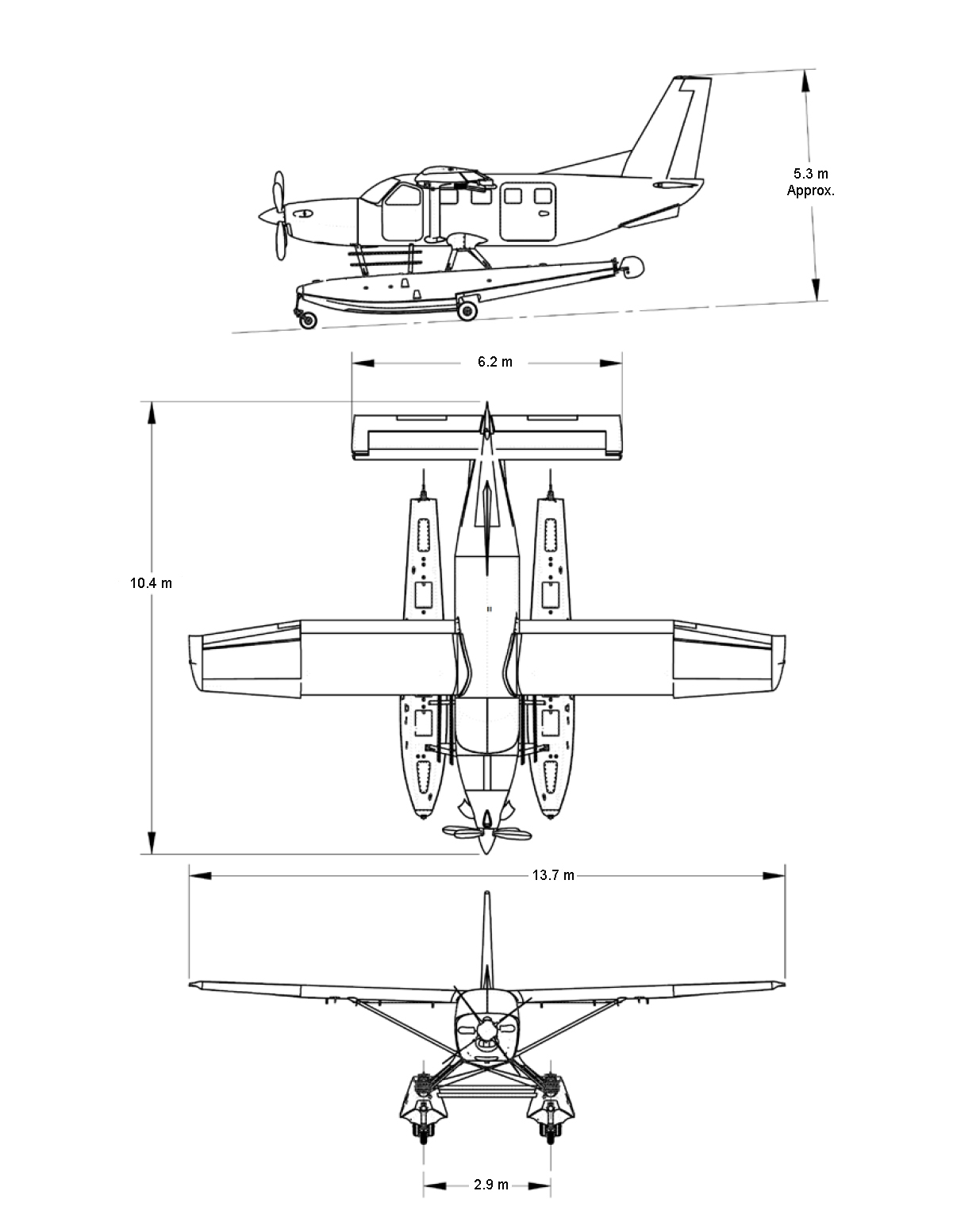

SPECIFICATIONS QUEST KODIAK 100 - SEA
|
||
|
Engine |
750 shp |
760 PS |
|
Engine TBO Hours |
4000 |
4000 |
|
Wingspan |
45 ft |
13,7 m |
|
Overall Length |
34 ft |
10,4 m |
|
Cabin Length |
190” |
4,82 m |
|
Cabin Height |
57” |
1,45 m |
|
Cabin Width |
54” |
1,37 m |
|
Propeller Blade Diameter |
5 Blade / 96” |
2,4 m |
|
Max Ramp Weight |
7305 lbs |
3313,5 kg |
|
Power Loading |
9.67 lb/shp |
4,4 kg/PS |
|
Float Make / Model |
Aerocet 6650 |
|
|
PERFORMANCE |
||
|
Max Cruise at 10,000 ft |
162 kts |
300 km/h |
|
Take-off Distance (Land) |
975 ft |
297 m |
|
Take-off Run Land (50ft Obstacle) |
1,507 ft |
459 m |
|
Landing Distance (Land) |
1,291 ft |
393 m |
|
Take-off Distance (Water) |
1,735 ft |
529 m |
|
Take-off Run Water (50ft Obstacle) |
2,332 ft |
711 m |
|
Landing Distance (Water) |
1,314 ft |
400 m |
|
Rate of Climb |
1,060 ft/min |
5,38 m/s |
|
Service Ceiling |
20,000 ft |
6096 m |
|
Gross Weight |
7,255 lbs |
3290 kg |
|
Landing Weight |
7,200 lbs |
3266 kg |
|
Useful Load |
2,755 lbs |
1250 kg |
|
Range |
1000 nm |
1852 km |
1,980,000 USD !
EXCLUDING VAT, IF APPLICABLE.
